ShockWatch 2 Impact Indicators

SpotseeImpact Indicators and Monitors

ShockWatch

ShockDot: Activated Impact Protection. Discover applications for ShockDot indicators, activated before use, ensuring safe transit for electronics, medical supplies, and more.



- +

Description

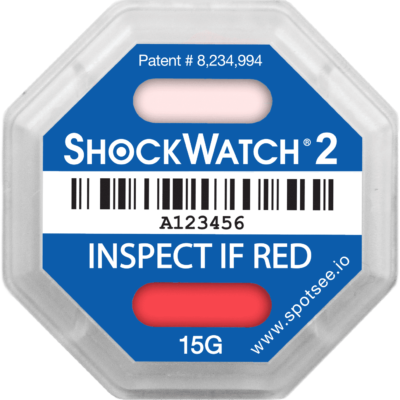

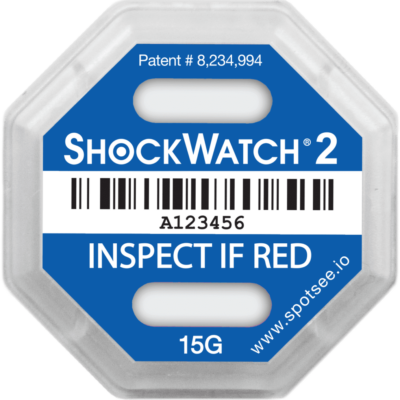

ShockWatch 2: Impact Monitoring for Secure Shipments

Eliminate shipping damage uncertainty and protect valuable goods with ShockWatch 2 impact indicators. These devices provide immediate visual evidence of impact during transit, enabling proactive risk management and ensuring safe delivery.

Key Benefits:

  • Detects hidden impact damage, reducing costly returns.
  • Ensures shipment integrity for fragile goods.
  • Reduces financial losses from damage.
  • Enhances customer satisfaction through reliable delivery.
  • Improves supply chain efficiency.

How it Works:

  • Activation: Arm with pull-tab before shipping.
  • Application: Self-adhesive attachment to goods.
  • Monitoring: Irreversible red indication upon impact exceeding threshold.
  • Assessment: Visual inspection for immediate damage detection.

Key Features:

  • Variable sensitivity (2G-75G) for diverse goods.
  • Durable build for diverse environments.
  • Unique serial numbers for traceability.
  • Tamper-proof design.
  • Cost-effective damage prevention.





ShockDot 2: Key Applications

  • Electronics & Technology:
    • Consumer Electronics
    • Telecommunications Equipment
    • Network Equipment
    • IT Hardware
    • High Tech Equipment
    • Networking Hardware
  • Industrial & Manufacturing:
    • Auto and Truck Parts
    • Metal Fabrication
    • Instrument Panels
    • Small Distribution Transformers
    • Appliances
    • HVAC (Heating, Ventilation, and Air Conditioning)
  • Healthcare & Aerospace/Defence:
    • Medical Supplies
    • Medical Devices
    • Aerospace Components
    • Defence Components
  • Logistics & Distribution:
    • Logistics & Transport
    • Packaging / Crating
  • Energy:
    • Energy and Utilities
  • Furniture:
    • Furniture and Fixtures



Part Numbers



ShockWatch 2 – 5G GLI-45000K
ShockWatch 2 – 10G GLI-46000K
ShockWatch 2 – 15G GLI-47000K
ShockWatch 2 – 25G GLI-48000K
ShockWatch 2 – 37G GLI-49000K
ShockWatch 2 – 50G GLI-50000K
ShockWatch 2 – 75G GLI-51000K



Selection Guide



5 – 15 ft³
.14-.42m³
15 – 50 ft³
.42-1.42m³
50 – 100 ft³
1.42-2.83m³
100 – 250 ft³
2.83-7.08m³
250 – 500 ft³
7.08-14.16m³
500 – 1,000 ft³
14.16-304.8m³
1,000+ ft³
304.8+m³
0 –10 lbs
0-5 kg
75G 75G 50G 37G N/A N/A N/A
10 – 25 lbs
5-11 kg
75G 50G 50G 37G 25G N/A N/A
25 – 50 lbs
11-23 kg
50G 50G 37G 25G 25G 15G N/A
50 – 100 lbs
23-45 kg
50G 37G 37G 25G 15G 15G 10G
100 – 250 lbs
45-113 kg
37G 37G 25G 25G 15G 15G 10G
250 – 1,000 lbs
113-454 kg
37G 25G 25G 15G 15G 10G 10G
1,000 – 2,000 lbs
454-907 kg
25G 25G 25G 15G 15G 10G 5G
2,000 – 5,000 lbs
907-2,268 kg
25G 25G 15G 15G 10G 10G 5G
5,000 – 10,000 lbs
2,268-4,536 kg
25G 15G 15G 15G 10G 10G 5G
10,000 – 15,000 lbs
4,536-6,804 kg
N/A 15G 15G 10G 10G 5G 5G
15,000 – 20,000 lbs
6,804-9,072 kg
N/A N/A 10G 10G 5G 5G 5G
20,000 – 30,000 lbs
9,702-13,608 kg
N/A N/A N/A 5G 5G 5G 5G
30,000+ lbs
13,608+ kg
N/A N/A N/A N/A 5G 5G 5G



Data Sheets & Important Information





IMPACT_LABEL Shockwatch_Label SHOCKWATCH

Additional information

Sensitivity Range

5G, 10G, 15G, 25G, 37G, 50G, 75G

Duration

0.5 – 50 ms

Tolerance

±15%

Operating Temperatures

-13°F to 176°F

Shelf Life

2 years when stored at standard temperature and pressure (68°F, 1 ATM)

Size

1.69 in x 1.69 in x 0.25 in

Quantity

10, 100, 1000
