£39.60

ShockWatch Impact Indicator

Indicators & LabelsMiningSpotseeImpact MonitorsImpact Indicators and Monitors

ShockWatch

ShockWatch Impact Indicators: Prevent Shipping Damage & Reduce Costs

Our tamper-proof ShockWatch labels provide clear visual alerts when potentially damaging impacts occur, deterring mishandling and minimising costs. With millions used annually, ShockWatch is a proven solution for protecting your products throughout the supply chain.



- +

Description

ShockWatch: Proactive Impact Monitoring for Supply Chain Protection

Protect your goods from costly damage with ShockWatch impact indicators. These devices provide clear, visual evidence of mishandling during transit or storage, enabling immediate intervention and risk mitigation.

Key Benefits:

  • Detects concealed impact damage, reducing returns and repairs.
  • Acts as a visual deterrent, minimising mishandling.
  • Reduces damage-related expenses and streamlines logistics.
  • Enhances customer satisfaction through reliable delivery.
  • Provides a competitive advantage through quality assurance.

Operational Overview:

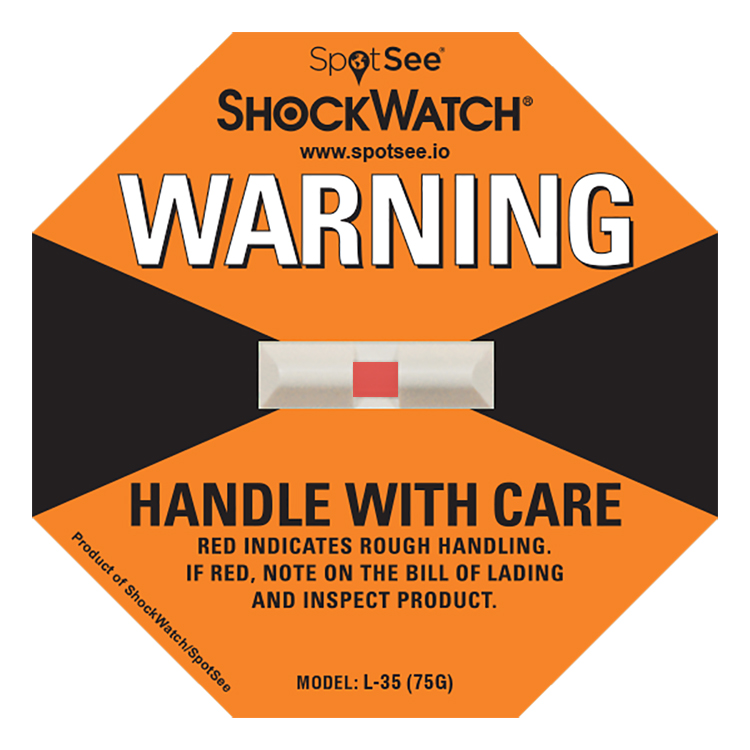

  • Tamper-proof indicators activate upon impact, turning irreversibly red.
  • Enables rapid damage assessment and corrective action.

Selecting ShockWatch:

  • Range of sensitivities to match product fragility.
  • Expert guidance for optimal protection.

As an authorised SpotSee distributor, we provide reliable ShockWatch solutions. Contact us to safeguard your shipments.



ShockDot: Impact Monitoring Across Diverse Industries

ShockDot impact indicators provide reliable protection for a wide range of applications, ensuring the integrity of goods during transit and handling.

Applications:

  • Electronics & Technology: Consumer Electronics, IT Hardware, Telecommunications.
  • Industrial & Manufacturing: Auto Parts, Metal Fabrication, HVAC.
  • Healthcare & Aerospace/Defence: Medical Devices, Aerospace Components.
  • Logistics & Energy: Transport, Packaging, Utilities.



Selection Guide



0-1ft³
0-.03m³
1-5ft³
.03-.14m³
5-15ft³
.14-.42m³
15-50ft³
.42-1.42m³
50+ft³
1.42+m³
0-10 lbs
0-4.56 kg
L-30 (100G) L-30 (100G) L-35 (75G) L-35 (75G) L-35 (75G)
10-25 lbs
4.56-11.34 kg
L-30 (100G) L-35 (75G) L-35 (75G) L-47 (50G) L-47 (50G)
25-50 lbs
11.34-22.68 kg
L-35 (75G) L-35 (75G) L-47 (50G) L-47 (50G) L-55 (37G)
50-100 lbs
22.68-45.36 kg
L-35 (75G) L-47 (50G) L-47 (50G) L-55 (37G) L-55 (37G)
100-250 lbs
45.36-113.40 kg
L-47 (50G) L-47 (50G) L-55 (37G) L-55 (37G) L-65 (25G)
250-1,000 lbs
113.40-453.59 kg
L-47 (50G) L-47 (50G) L-55 (37G) L-65 (25G) L-65 (25G)
1,000+ lbs
453.59+ kg
– L-55 (37G) L-65 (25G) L-65 (25G) L-65 (25G)



Part Numbers



L-30 ShockWatch Label 100G (Green) GLI-20100
L-35 ShockWatch Label 75G (Orange) GLI-20300
L-47 ShockWatch Label 50G (Red) GLI-20500
L-55 ShockWatch Label 37G (Purple) GLI-20686
L-65 ShockWatch Label 25G (Yellow) GLI-20700



Related Documents





IMPACT_LABEL Shockwatch_Label SHOCKWATCH

Additional information

Sensitivity Range

25G, 37G, 50G, 75G, 100G

Duration

0.5 – 50 ms

Tolerance

±15%

Operating Temperature

-13°F to 176°F

Shelf Life

2 years from date of sale when stored at standard temperature and pressure (68°F, 1 ATM)

Size

3.8 in x 3.8 in

Pack Size (Quantity)

50PK
